While using the Pilot-24 Lite as a permanent power backup device, you can be rest assured that you won't be woken in the middle of the night to find that your CPAP machine is not running. If the power is interrupted at night, your CPAP machine will drive power from your Pilot-24 Lite without any interruption.
Using Pilot-24 Lite as a Portable Travel CPAP Battery will help you receive therapy while traveling. This includes remote locations where mains power is not available in situations such as camping, road trips and during air travel.
The Pilot-24 Lite can also be used as a charging station for various electronic devices. With the built-in USB port it is capable of powering a variety of handheld electronic devices such as mobile phones, tablets and cameras.

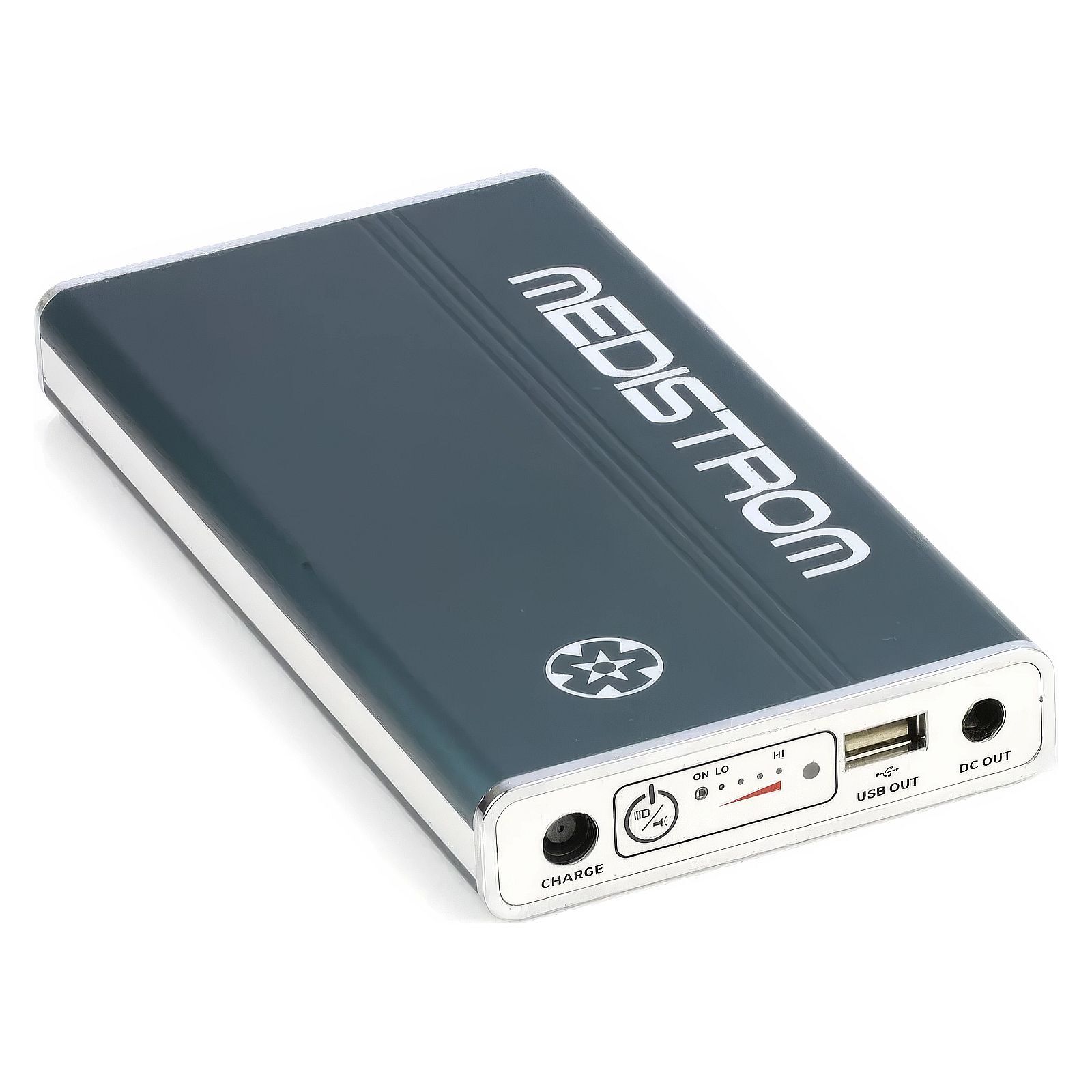

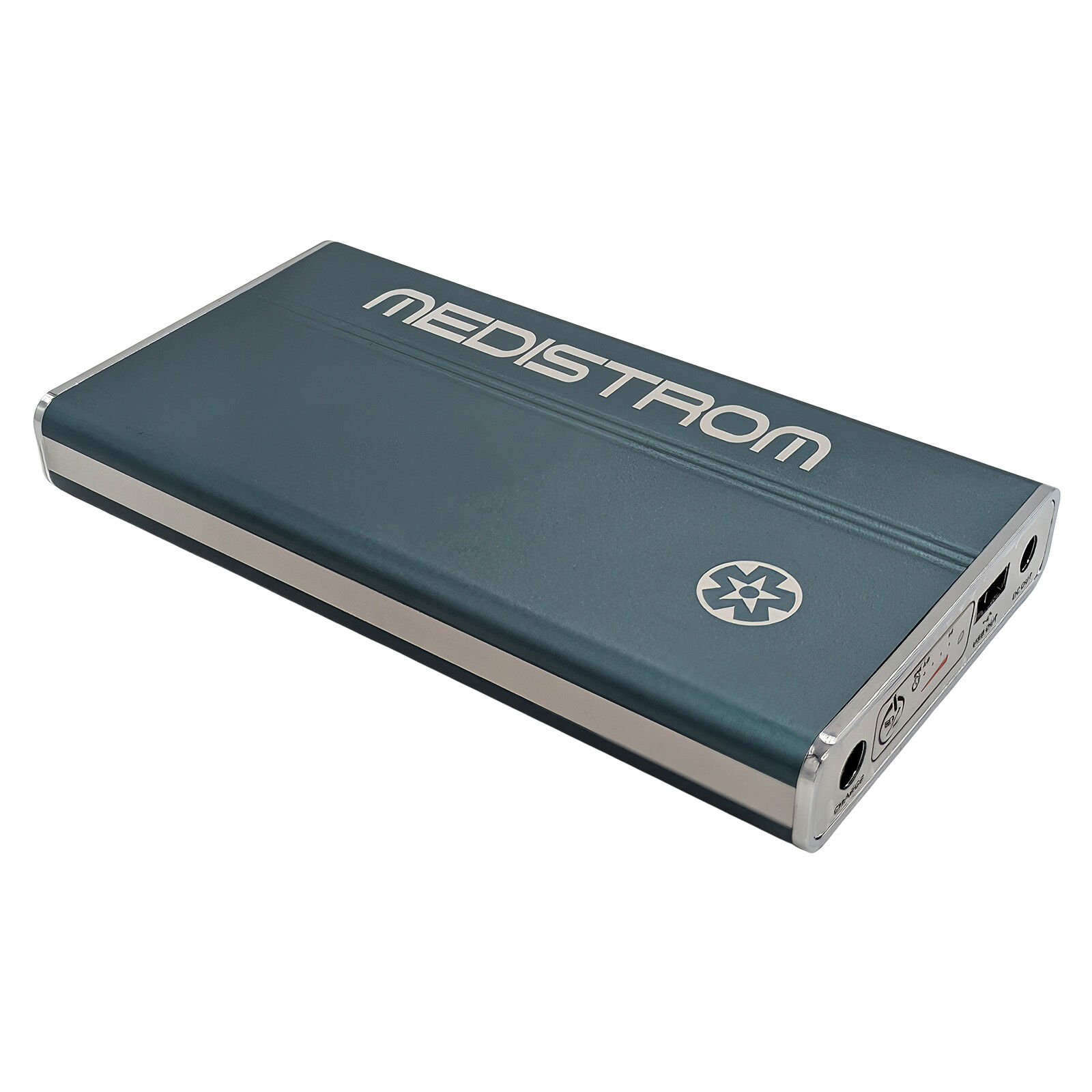

- Pilot-24 Lite Battery

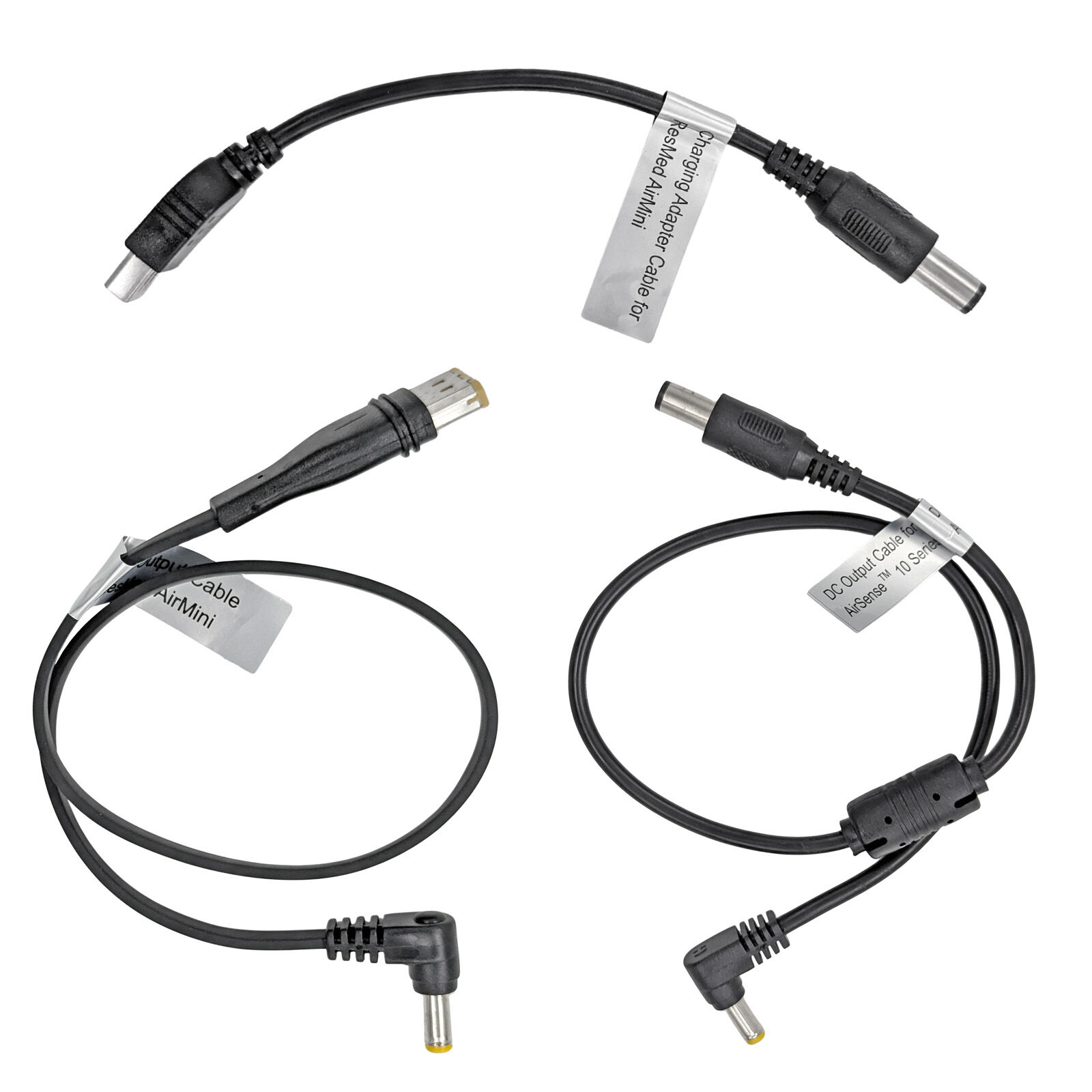

- Output Cable for ResMed AirSense 10
- Output Cable for ResMed AirMini
- Short Charging adapter for ResMed AirMini
- Fabric Carrying Case
- Product Manual (English, French, German, Spanish)
- Quick Start Guide (English, French, German, Spanish)
Battery Run Time
Provides up to 16 hours of battery life* when powering CPAP and APAP devices.
*1-2 nights of continuous run-time on an average pressure setting with the humidifier and heated tubing disabled. Battery run-time depends on the percentage of charge in your battery, age of the battery, pressure settings, humidifier/heated tube use and environmental factors as per specifications in the user manual.
See Usage Tips and Product Manual under Specifications
Please Note: Fully charge your Pilot 24 Lite before storage and at least every 6 months thereafter. Failure to do this will be considered negligence and will void the warranty.
Cell Type: Industrial grade genuine LG rechargeable lithium ion cells
Rated Input: 24V, 60W (NORMAL), 90W (MAX)
Rated Output: DC 24V, 3.75A
USB Out: 5V, 2.5A
Life Span: Over 500 full charge/discharge cycles
Dimensions: 17cm x 9cm x 2cm (6.7" x 3.5" x 0.8")
Weight: 560g (1.3lbs)
Power Gauge: 4 stage Charge Level Indicator Lights
Recharge time: 2-3 hours (7 to 9 hours via the ResMed AirMini AC Adapter)
Tips to get the most out of your battery
Make sure the battery is at full charge prior to using.
Disable and/or reduce the need to use the humidifier and heated tubing. The heater plate will draw significantly more power from your battery and may cause it to run out during use. The battery lasts longer when no humidifier is being used.
Fully charge your Pilot 24 Lite Battery before storage and at least EVERY 6 MONTHS thereafter. Failure to do this will be considered negligence and will void the warranty.
The Pilot 24 Lite Battery can be used as an Uninterrupted Power Supply in areas that experience frequent power outages. The CPAP Device will resort to using the battery if Mains power is lost.
It is important to check the compatibility of your device with regards to how long the battery will last.
It is suggested prior to operating where mains power support is unavailable, that you trial your CPAP / APAP devise using the battery setup at home where you can change to mains power if required.
This home trial will give you the ability to access the operating battery life your setup will provide you.
