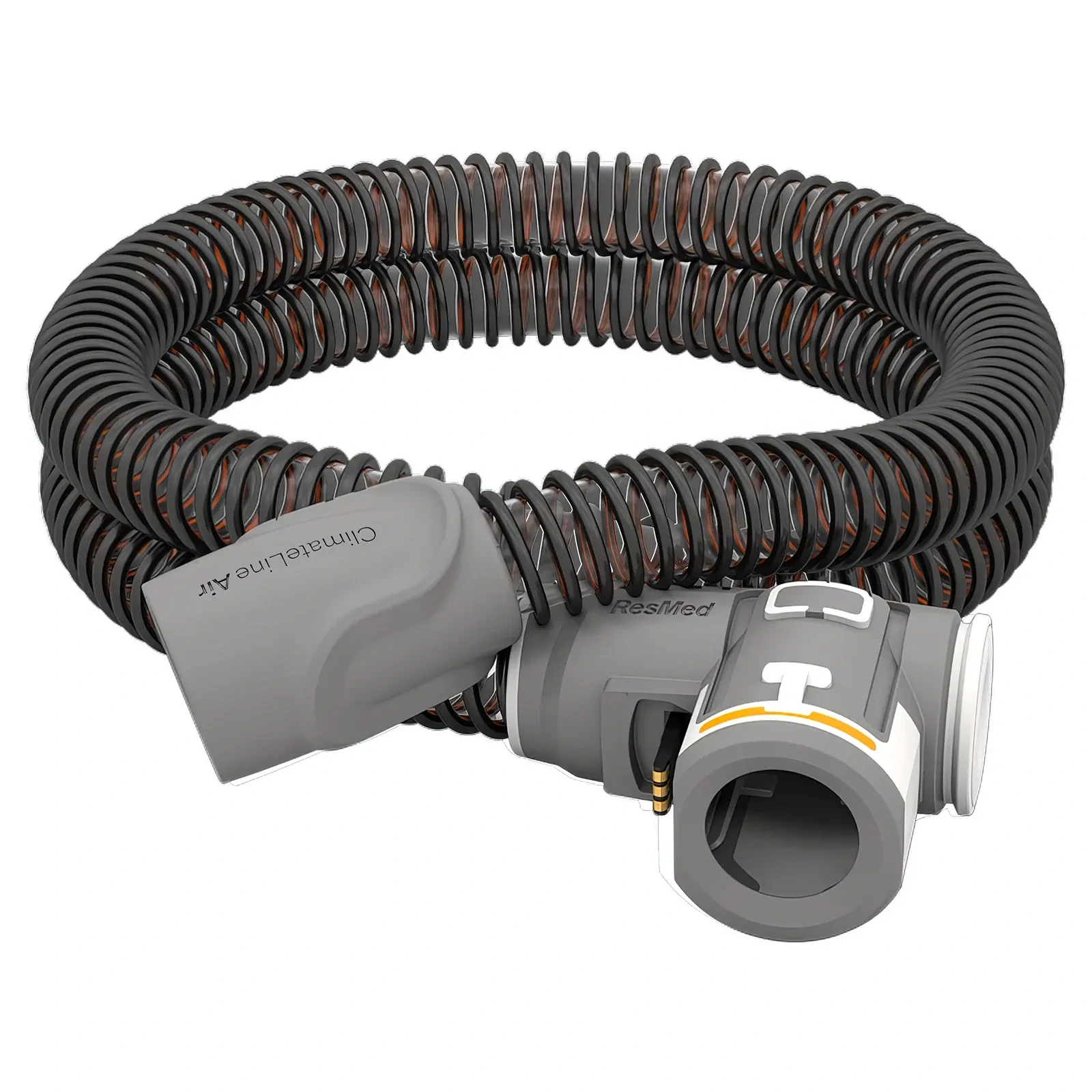

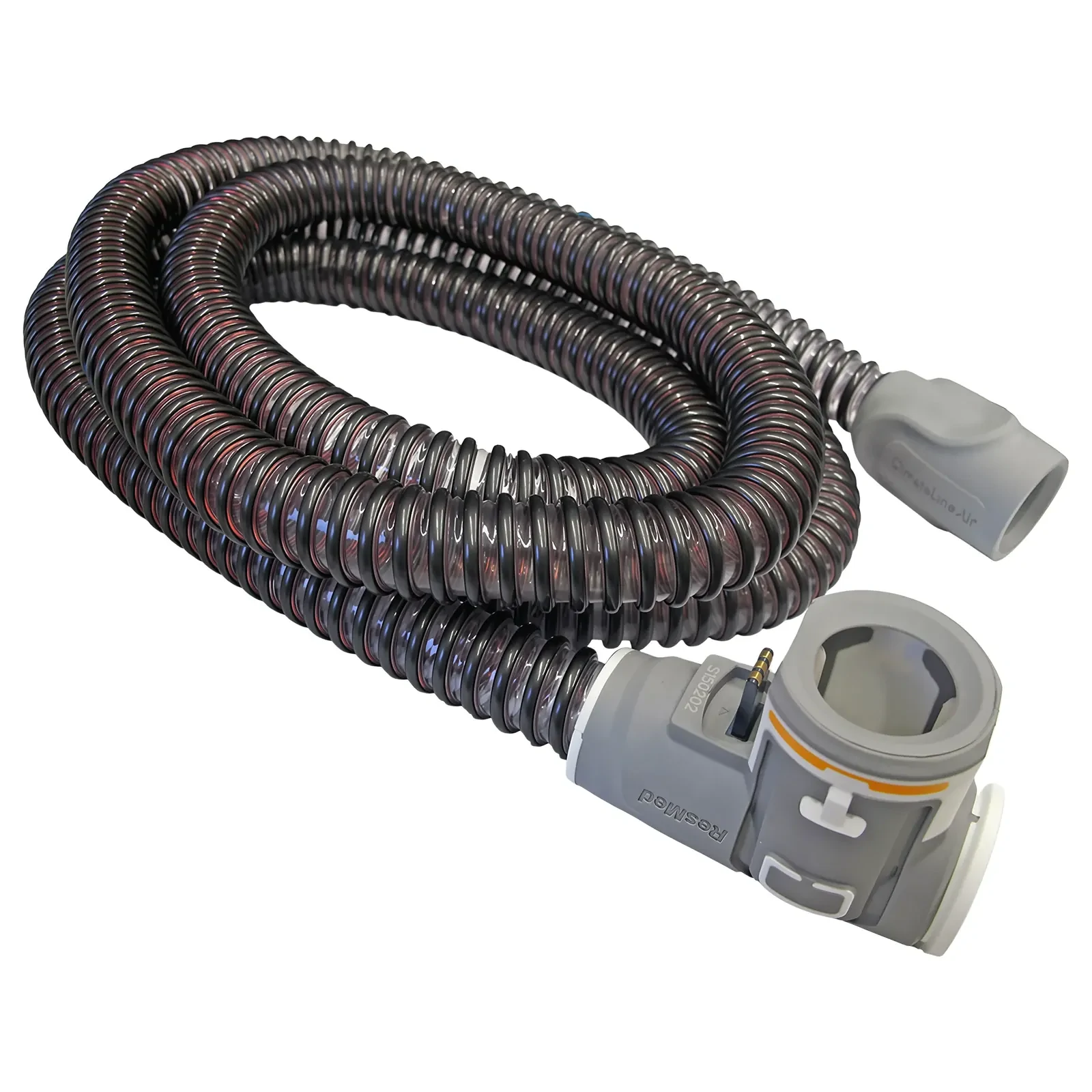

ResMed ClimateLineAir Heated Tubing for AirSense 10 - 2m

For ResMed AirSense 10 CPAP machines. This heated tube is specially designed to provide you with the optimal temperature and humidity for your comfort and virtually eliminates rainout.

The ClimateLineAir is a heated tube that is purpose-built for ResMed AirSense 10 devices.

Environmental conditions

Specification Value
Operating temperature +5°C to +35°C (+41°F to +95°F)
The airflow for breathing can be higher than room temperature. Device remains safe at 40°C (104°F) ambient.
Operating humidity 10% to 95% RH, non-condensing
Operating altitude Sea level to 2,591 m (8,500 ft); 1013 hPa to 738 hPa
Storage & transport temperature −20°C to +60°C (−4°F to +140°F)
Storage & transport humidity 5% to 95% RH, non-condensing
EMC / tubing resistance & compliance Refer to the device User Guide.

Temperature limits

Parameter Value
Temperature range +16°C to +30°C (+60°F to +86°F)
Cut-out +41°C (+106°F)

Operating pressure range

Parameter Value
Maximum recommended pressure 30 cm H2O (30 hPa)

Physical — Air tubing

Air tubing Material Length Inner diameter
ClimateLineAir Flexible plastic and electrical components 2 m (6′6″) 15 mm (0.6″)

Design life

Component Design life
Air tubing (Standard, SlimLine, ClimateLineAir, ClimateLineAir Oxy) 6 months
SKURES37296
Model #37296
Barcode #619498372966
BrandResMed
Shipping Weight0.5000kg
Shipping Width0.150m
Shipping Height0.040m
Shipping Length0.300m
Shipping Cubic0.001800000m3

Stock at our clinics

Click & Collect is available at every mySleep clinic — order online for pickup, or call ahead and we'll confirm stock availability.

Chermside
1300 605 700 Call to confirm
Greenslopes
1300 605 700 Call to confirm
Mt Gravatt
1300 605 700 Call to confirm
North Lakes
1300 605 700 Call to confirm
Warana
1300 605 700 Call to confirm

Stock levels are indicative and update periodically. To secure an item, order online for Click & Collect — stock is only assigned to your order once it's placed.

Item

Warranty Period

Accessories - excluding consumables & single use devices:
Power supply Units

SD Cards

USB modules & adapters

Standard, Slimline & ClimateLine Tubing

90 days

Click here for full Resmed warranty details
